What the Newcastle Entertainment Centre Supplies In-House (and What You'll Need to Bring)
If you're putting on a show at the Newcastle Entertainment Centre — a tour stop, a corporate event, a charity gala, a brand activation — one of the first things you need to know is what the venue gives you, and what you (or your production company) need to bring on the truck.
This guide is the answer. It's based on 27+ years of working the NEC floor, and it's written for the people who actually have to plan it: tour managers, production managers, MICE planners, promoters, corporate event coordinators.

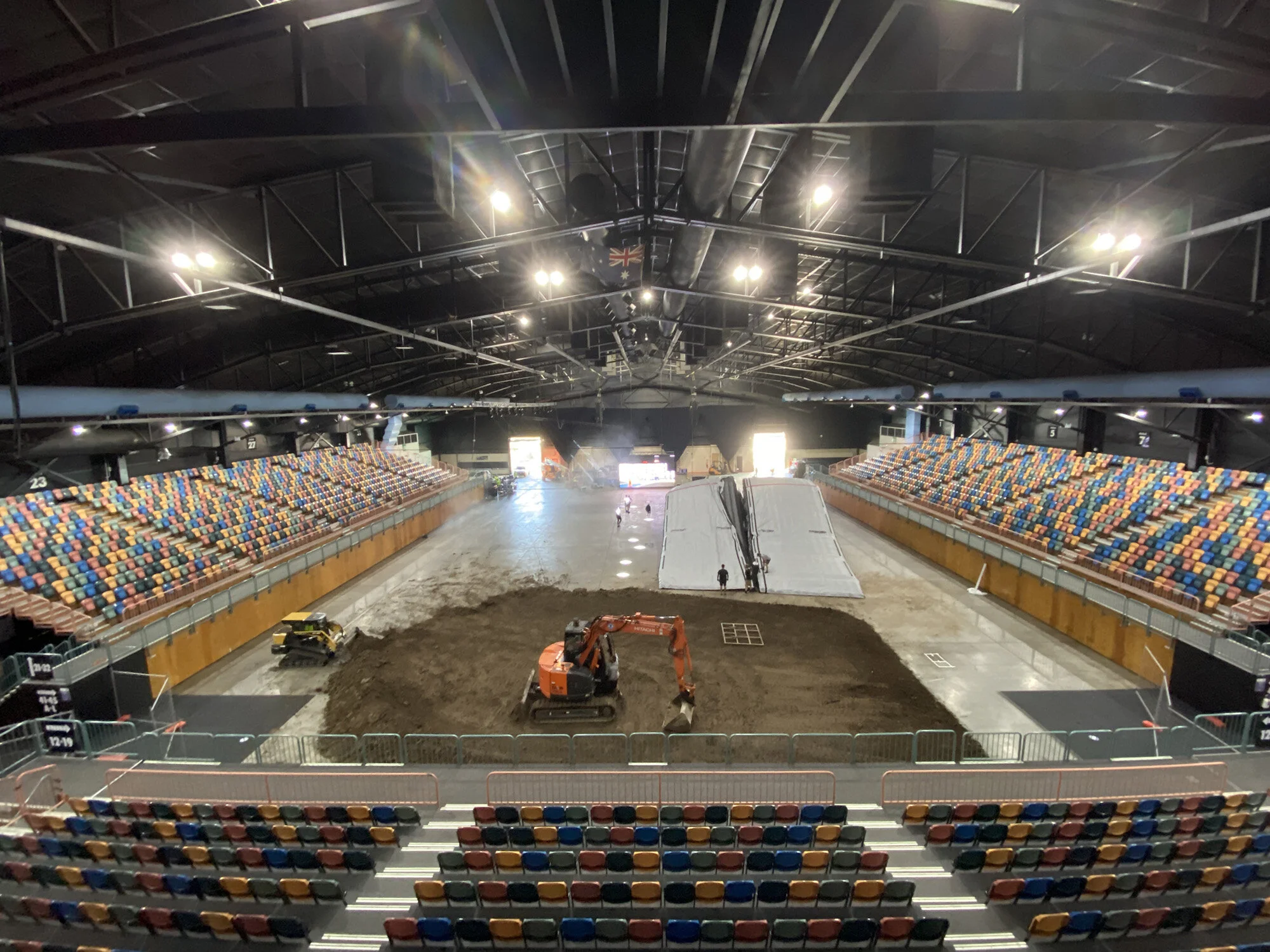

The NEC at a glance
The Newcastle Entertainment Centre sits on Brown Road, Broadmeadow — part of the Newcastle Showground precinct, operated by ASM Global (https://www.asmglobal.com/p/our-portfolio/arenas/newcastle-entertainment-centre) in partnership with Venues NSW (https://www.venuesnsw.com/our-venues/newcastle_entertainment_centre_showground)
Quick numbers:
- Concert capacity: ~7,500
- Banquet capacity: ~2,000 seated
- Floor area: 1,650 m² of clear, configurable floor
- Loading doors: Two, each 4.3 m wide × 5.2 m high — Pantech-accessible straight onto the arena floor
- Floor load rating: 750 kg/m² UDL on a 45 kPa concrete slab (rated for serious truss weight, ground-stacked PA, and mechanical lifts)
Configurations range from a full arena-bowl concert to a flat-floor expo, conference, sporting event, banquet, or hybrid. The room scales — so does what you need to bring.
What the NEC supplies in-house
The venue gives you a strong, professional foundation. Here's what's included.
Power and distribution
Two show power distribution boards located on the rear wall one each side of stage. Each board is supplied with 2 x 400amp, 415volt 3 phase @ 50hz (three phases, neutral and earth). 2 x 400amp with powerlock on both sides.
31 in floor service pits – each providing a 20amp single phase supply to four double 10amp GPO’s and Wilco 32amp three phase socket (three phases, neutral and earth).
Portable distribution boards available of varying capacity.
Total building supply metering is available for peak kVA usage and energy consumption tracking — useful if you're running heavy LED video walls or motorised rigging. Plan your power budget early; the NEC's electricals team will work with your production company on what you need patched in and where.
House lighting and air-conditioning
The arena has top-grade house lighting and full HVAC. House lighting is fine for load-in, audience walk-in, and a basic stage wash for awards-style events that don't need a designed look. For anything with a show LD or moving-light cues, you'll bring intelligent fixtures and control (more on that below).
Staging framework
The venue holds a Sico Fold n Set modular staging system — 115 decks at 8 ft × 4 ft, 36 frames adjustable from 4 ft to 6 ft 4 in in 4-inch increments, plus another 10 frames for lower-rise builds. That covers a lot of the basic stage geometry for corporate events, awards nights, and standard concert risers. Show-specific custom staging — thrust, B-stage, scenic builds, raked or curved looks — comes with the show.
Loading dock and access
Two loading doors, both 4.3 m × 5.2 m, with Pantech access directly onto the arena floor off Brown Road. No long roll-up corridors, no awkward ramp angles, no stairs. The dock is one of the better-designed arena docks in regional NSW — load-in and load-out are genuinely fast when the production company knows the room.
Rigging points and slab strength
The arena floor's 750 kg/m² UDL on a 45 kPa slab is rated to take ground-stacked subs, motorised hoists, mechanical lifts, and just about any practical truss weight your design calls for. Rigging plot needs to be lodged in advance through the venue — your production company handles the back-and-forth with the NEC's rigging supervisor.
What about Wi-Fi, comms and FOH position?
Standard arena Wi-Fi is available; for show-critical streams (broadcast, comms, ticketing) you'll want a dedicated drop, which the venue can arrange in advance. FOH (front of house) position varies by configuration — the venue and your production designer agree on it during advance.
What you (or your production company) will need to bring
Here's where the gap closes. For most shows, the NEC is providing the infrastructure — and your production company is providing the show.
Audio: PA, FOH desk, monitors, wireless
Touring concerts and large-format corporate events run their own PA — typically a flown line array sized to the room (Adamson, d&b, L-Acoustics, Meyer or similar), a digital FOH console (DiGiCo Quantum, SD-series, or whatever the rider calls for), monitor world (in-ears + wedges), and wireless RF (Shure Axient Digital, Sennheiser EW-DX). Smaller corporate events might get away with a 4–8 box left/right rig and a compact desk; arena concerts will not.
Lighting design: intelligent fixtures, control, rigging
House lighting won't carry a show. For anything with cues — concerts, awards nights, gala dinners with a designed look, brand activations — you bring moving lights (Martin, Robe, Clay Paky, GLP, Chauvet Professional or similar), conventional wash, control (grandMA is the industry default), DMX/network distro, and the truss + motors to fly it. Lighting design is also where the creative weight of most events lives, so this is rarely a corner-cut.
Video: LED screens, cameras, switching, playback
The venue has no in-house LED video wall. If your show needs a backwall, IMAG side screens, scenic LED, projection mapping, or live camera coverage with a switched feed, your production company brings all of it — panels (Pixapanel, ROE, Unilumin, Absen tier), processors, cameras, vision mixer, playback rigs, and the comms backbone to run it.

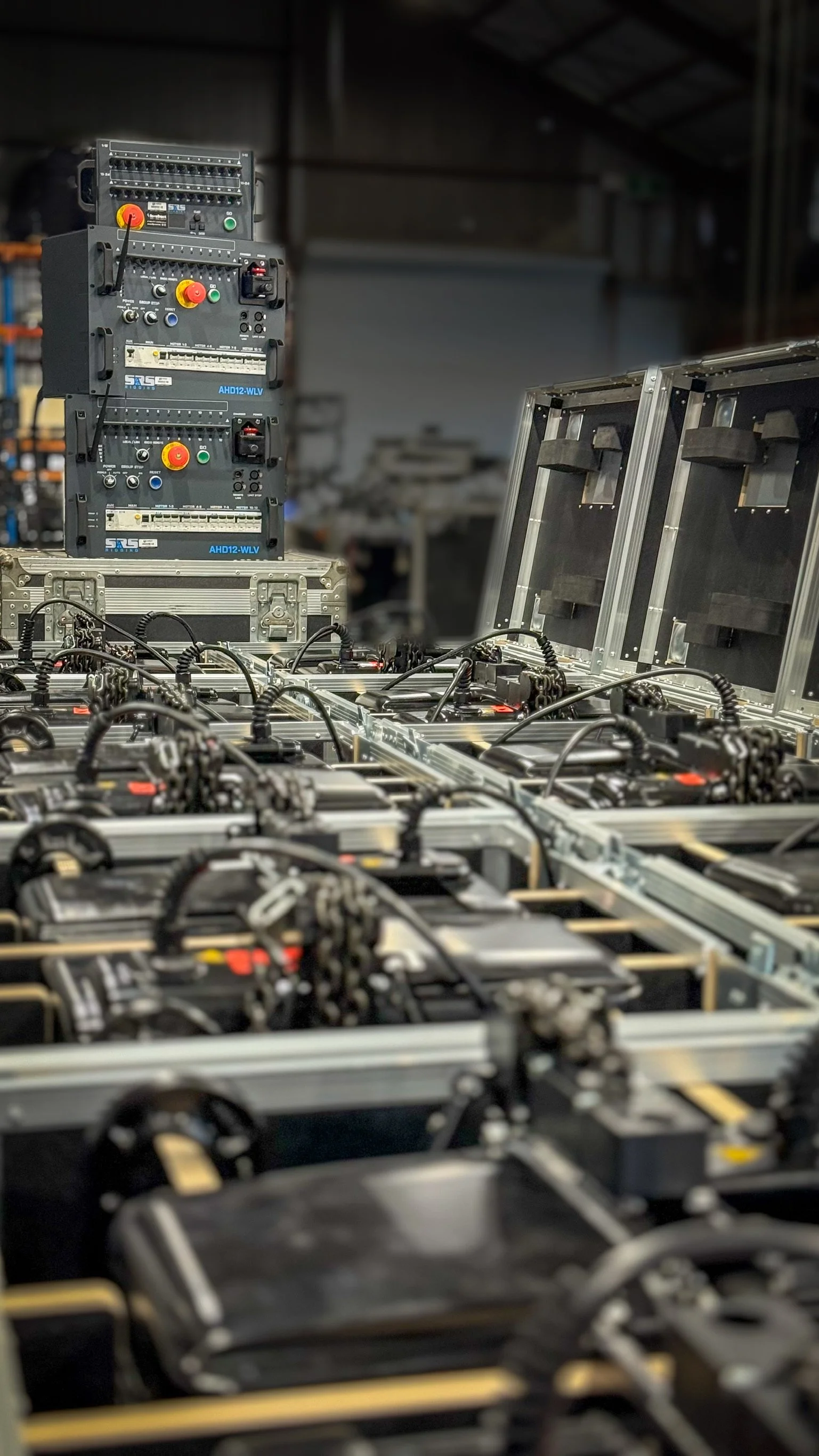

Show-specific rigging and motors
The NEC's structural rigging is solid; the show-specific motorised rigging — chain hoists, controllers, automated trusses, kinetic elements — comes with the production package. Standard chain motors (CM Lodestar, GIS D8+ class) plus wired and wireless control are typically what's needed.
Backline, set, soft goods, comms, crew
If it's a music tour, you bring backline (or supplement what the artist's crew brings). If it's a branded event or a touring exhibition, you bring the set and soft goods. You bring crew comms (Riedel / Clear-Com), a competent FOH operator, monitor engineer, lighting director, video director, and crew chief. The NEC supplies the venue staff; your production company supplies the show team.
The five questions tour managers always ask
"Can we get trucks straight onto the floor?"
Yes. Two 4.3 m × 5.2 m doors, Pantech access direct to the arena floor.
"Is the floor rated for our rigging plot?"
Yes for almost any practical plot — 750 kg/m² UDL on a 45 kPa slab. Lodge the plot through the venue in advance.
"What's available power-wise?"
Portable distro in multiple capacities, with peak-kVA metering available. Confirm specifics with the NEC's electricals team during advance.
"Does the venue supply PA / lighting / video?"
Basic house systems only. Show production (PA, designed lighting, LED, cameras) comes from your production company.
"Who do you recommend for production locally?"
The venue's team works with several production companies; Forefront is one of the local Hunter-region production companies they refer clients to. We're just minutes from the Brown Road dock, with arena-grade audio, lighting, video and rigging in-house at our Warners Bay warehouse.
How Forefront fits in
We've delivered production at the NEC for over 27 years — concerts, sports entertainment, corporate events, charity galas, brand activations, exhibitions. Show examples include the Westpac Rescue Helicopter Ball, PBR Australia, Freestyle Kings, and Lego Brickman
Our base in Warners Bay puts our crew, our gear, and our second-guess inventory just minutes from the dock — so when something needs replacing on show day, it's already on the same side of Lake Macquarie.
If you're planning a show at the NEC and want one team, one quote and one point of contact for audio, lighting, video and rigging, reach out www.ffp.com.au/contact We'll come back with a clear plan within 24 hours.
